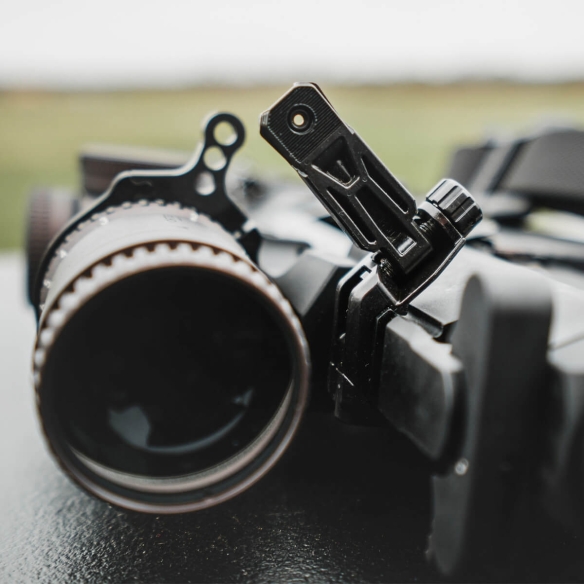

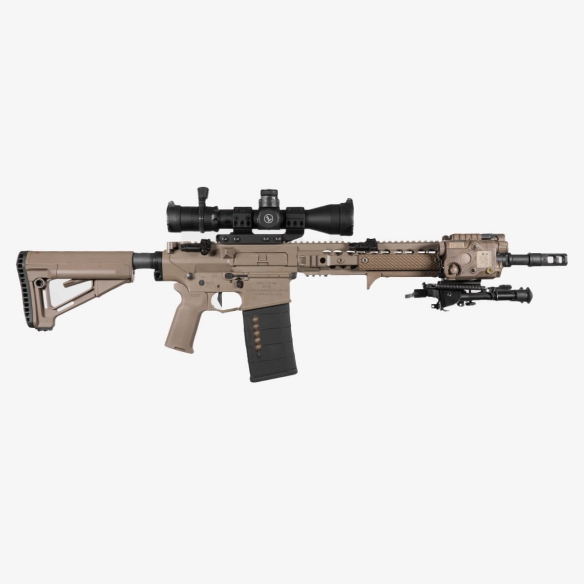

Building on the proven MBUS Pro platform, the MBUS Pro Offset Sights are part of an an effective aiming system to supplement magnified optics on M1913 Picatinny mounting surfaces. In the event of a damaged or nonfunctional primary optic, or a close target, rotating the rifle 45 degrees provides the shooter with a fully-featured iron sighting solution.

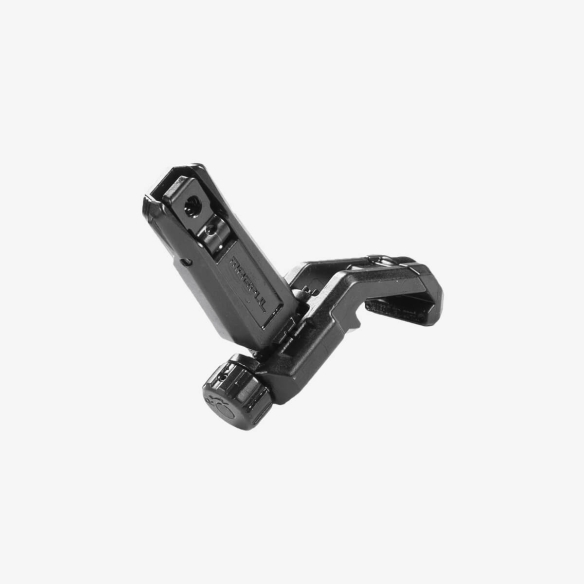

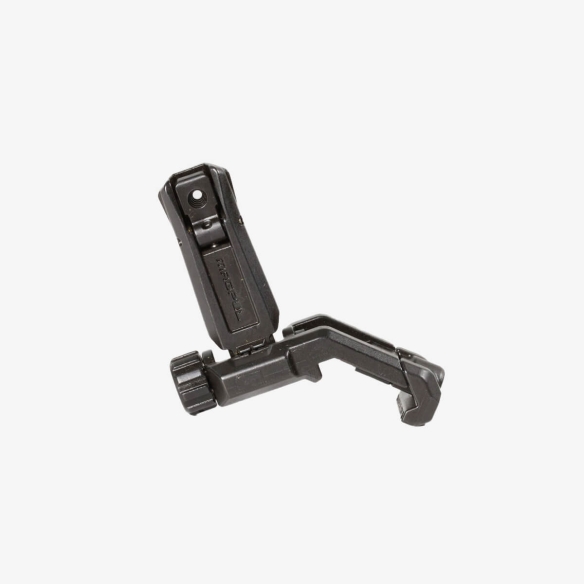

The MBUS Pro Offset Rear Sight features durable Melonited steel construction, positive detented lockup when deployed, tool-less windage adjustment for easy zeroing, dual rear apertures, and a low profile footprint to ensure compatibility and reduce interference with most rifle setups.
Made in the USA.
MELONITE FINISHED ALL STEEL CONSTRUCTION
- Case hardened and finished with Melonite QPQ™ for extreme resistance to wear and corrosion
WINDAGE ADJUSTMENT KNOB
SNAG-FREE, TUCKED AWAY PROFILE WHEN STOWED
- Positive detents in both the up and down positions
LOW PROFILE WHEN DEPLOYED
- Standard AR height over bore when deployed, 45 degree offset to the right-hand side
COVERS LESS THAN .66″ OF TOP RAIL
Technical Specifications
Position: Rear
Height above rail, stowed: ~0.18 in
Length, stowed: 2.0 in
Weight w/ hardware: 2.0 oz
Small aperture dia.: 0.07 in
Large aperture dia.: 0.19 in
Mounts on any MIL-STD-1913 Picatinny/STANAG 4694 rail
*NOTE: Only compatible with MBUS Pro OFFSET Front sight MAG525.
WINDAGE ADJUSTMENT
- ~0.5 MOA (0.566″/100m) per click with a 14.5″ sight radius
- ~0.4 MOA (0.410″/100m) per click with a 20″ sight radius
