Technical Specifications
Platform: Remington® 700
Compatibility: Standard Remington 700 pattern long action rifles (receiver mounting screw center-to-center of 7.375″) with stock Remington hinged floorplates*

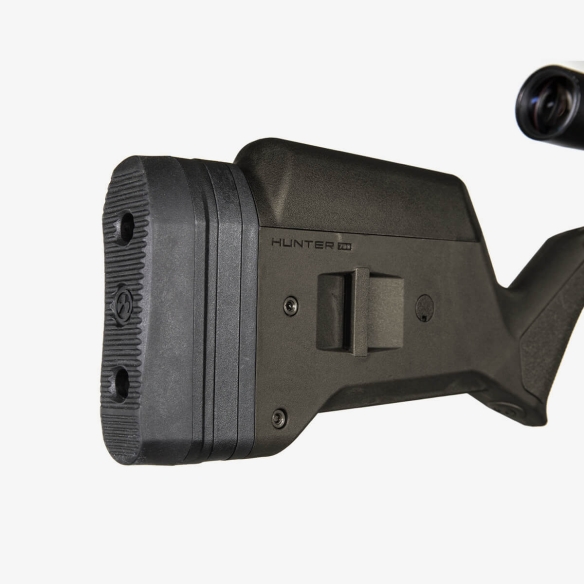

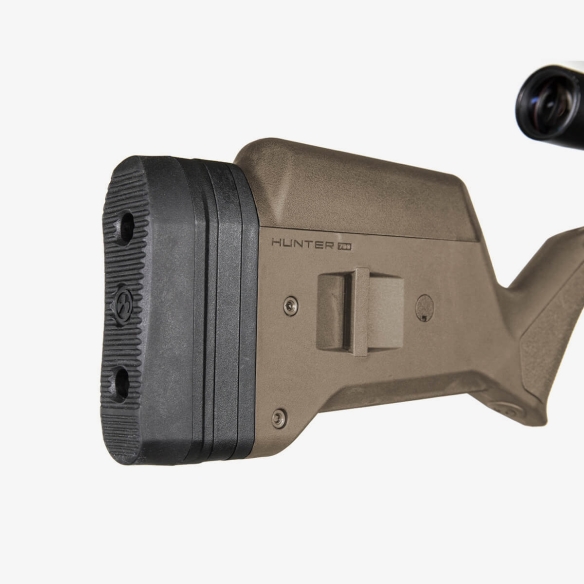

Butt-Pad Dimensions: 1.5 x 5.0 in
LOP Adjustment Range: ~13.0 – 15.0 in
Weight: 3.2 lbs without action and bottom metal (with two Spacers installed)
Width of Butt, max: 1.5 in
Width of Forend, max: 2.3 in
Other Specs:
- *NOTE: Fits right-hand receivers only.
- Accepts ALL factory Remington barrels.
- Compatible with aftermarket barrel profiles up to a Medium Palma (0.920″ dia. 5.50″ forward of the breech).
- Accepts most factory and aftermarket triggers.
- All blind floorplate ADL models will require current factory Remington hinged bottom metal or the optional Magpul Bolt Action Magazine Well 700L Standard or Magnum. Not compatible with Remington 700 DM models with their proprietary detachable box magazines.
- Due to interference with raised Cheek Risers, not compatible with the ISS system (J-Lock bolt) without modification. Regardless of bolt used, all raised Cheek Risers will need to be temporarily detached to remove the bolt for maintenance.
- Since factory action mounting screws can come in a variety of lengths, grinding to length or utilizing longer replacements may be necessary to optimize fit with the Hunter 700L.
