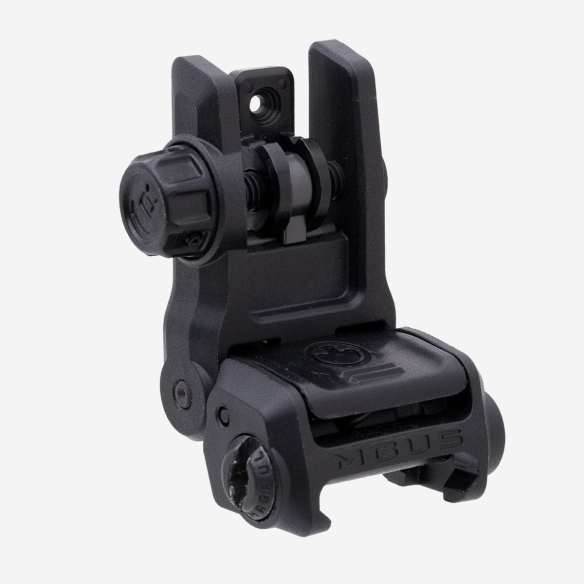

MBUS 3 Sight – Rear

$56.95

MBUS Value Meets MBUS Pro Features

The next evolution in our MBUS (Magpul Back-Up Sight) line, the MBUS 3 incorporates the best features, strengths and value of our original MBUS and MBUS Pro Sights in a feature-packed back-up sight system.
Description

Significantly reduced in size from the MBUS, it sits at just 0.55” high when folded, 1.38” at its widest point, and weighs a scant 30 grams with hardware. Its aesthetics are derived from the MBUS Pro, but the MBUS 3 Rear Sight is constructed of our impact-resistant polymer, making it lightweight and extremely durable. Featuring the same spring-loaded technology as its predecessor, they can be deployed with an ambidextrous push-button.

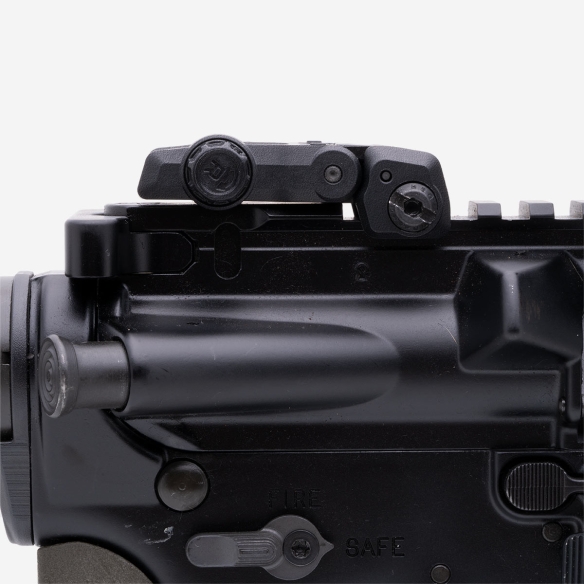

The MBUS 3 Rear Sight sits at standard AR-height when deployed and includes a windage adjustable, rapid-select aperture system.

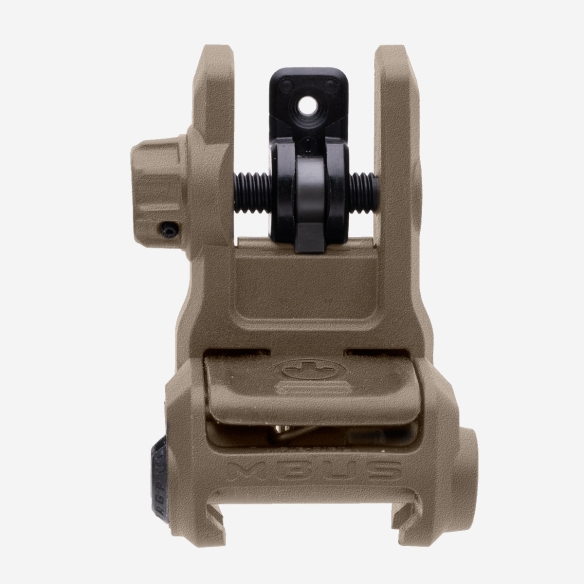

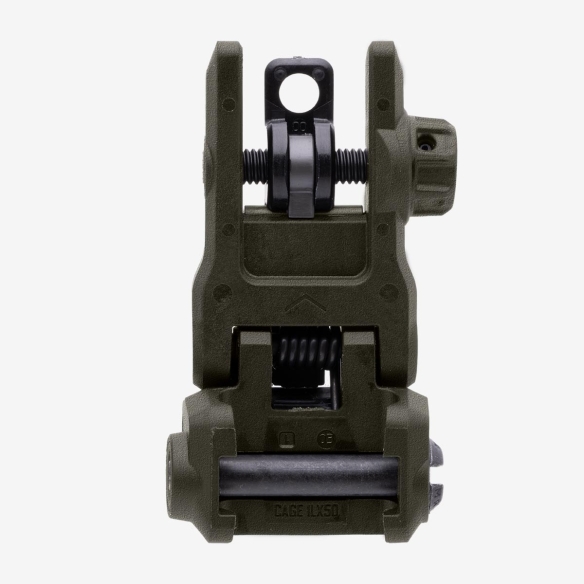

MBUS 3 Sights will be available in Black, Flat Dark Earth, and OD Green.

Made in the USA.

FULL-FEATURED SPRING-LOADED FLIP UP SIGHT

  • Ambidextrous push-button deployment and rapid-select rear aperture system
  • 0.55” high when folded and 1.38” wide at widest point
  • Standard AR-height when deployed

IMPACT-RESISTANT POLYMER CONSTRUCTION

  • Polymer construction, smaller size provides light weight and resists operational abuse

CLAMPS TO MOST MIL-STD-1913 PICATINNY RAILS

Technical Specifications

Position: Rear

Height above rail, stowed: ~0.55 in

Platform: AR10, AR15, M4, M16, M110, SR25

Weight, w/ hardware: 30 g

Center of aperture to top of rail: 1.41 in

WINDAGE ADJUSTMENT

  • ~0.5 MOA (0.606”/100m) per click with a 14.5″ sight radius
  • ~0.4 MOA (0.439”/100 m) per click with a 20″ sight radius
SKU: MAG1167 Tags: , , , , , , , , ,
